Quick Details

  • Condition: New
  • Efficiency: F9
  • Construction: Bag Filter
  • Filtration Grade: Medium Filter
  • Medium Material: Fiberglass
  • Porosity: 0.4um
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KLC
  • Model Number: KLC-filter
  • Dimension(L*W*H): 500 295 595
  • Weight: 5.6kg
  • Certification: ISO
  • Warranty: 6 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Filter material: Synthetic fiber / Glass fiber
  • Filter pocket types: Clothing car sewing bag/ Ultrasonic bag
  • Frame Material: Aluminium profile/ Aluminium plate/Galvanized steel/Stainless steel
  • Filter efficiency: 45%-95%@0.4um
  • Optional size: 17-50mm
  • Optional size for plastic: 21mm 25mm
  • Test: VTT test
  • Width: 592mm
  • Height: 592mm
  • Depth: 500mm

Packaging & Delivery

Packaging Details: Perfect Package Standard Export Package
Delivery Detail: Shipped in 7 days after payment

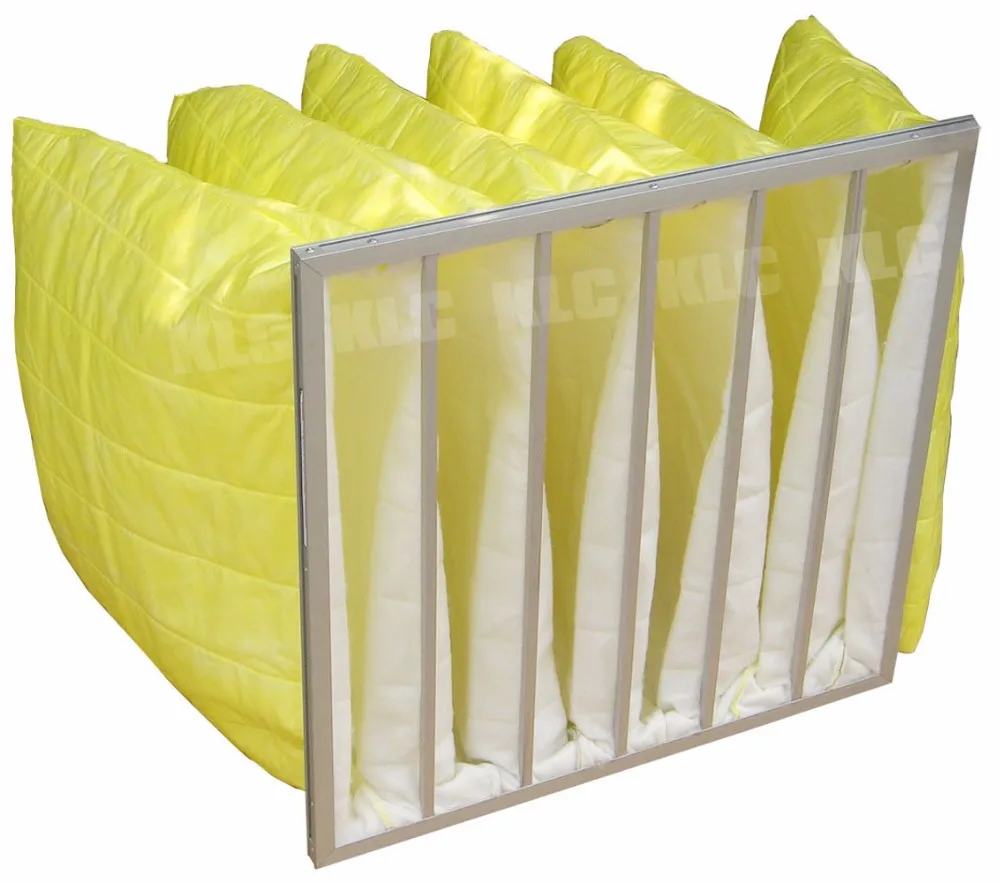

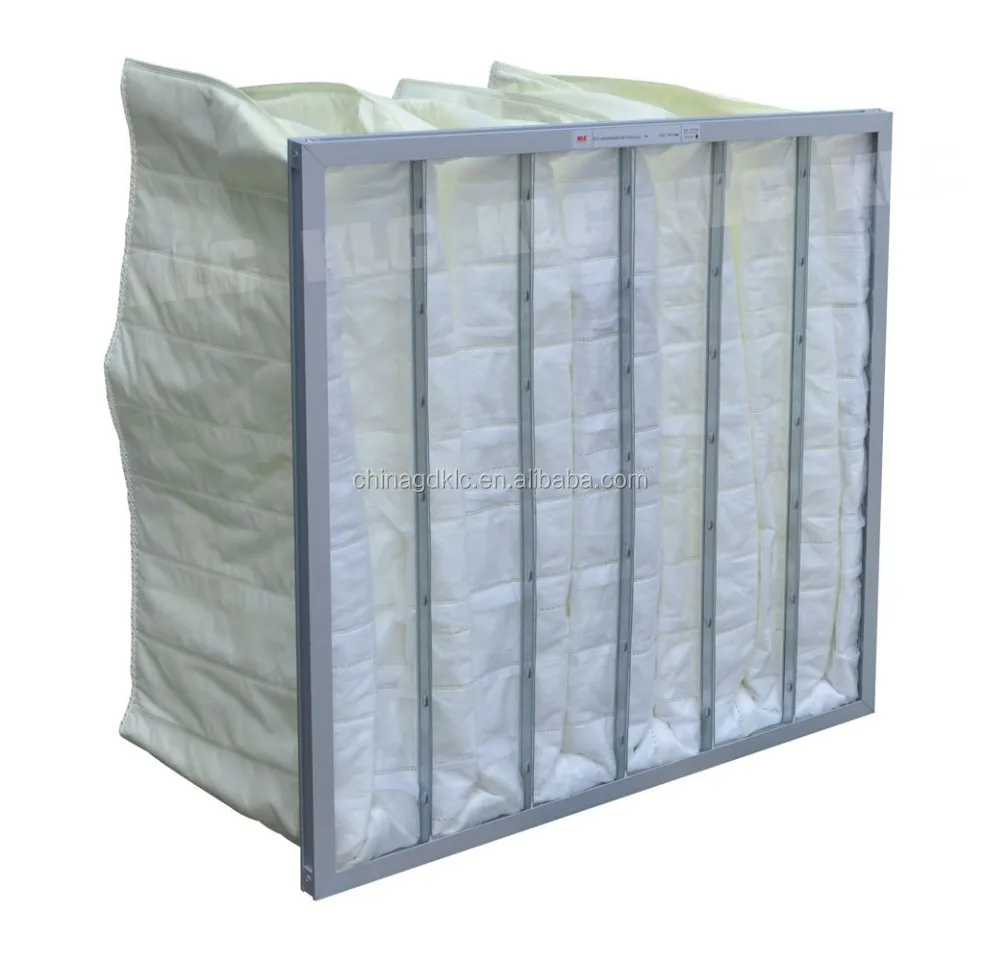

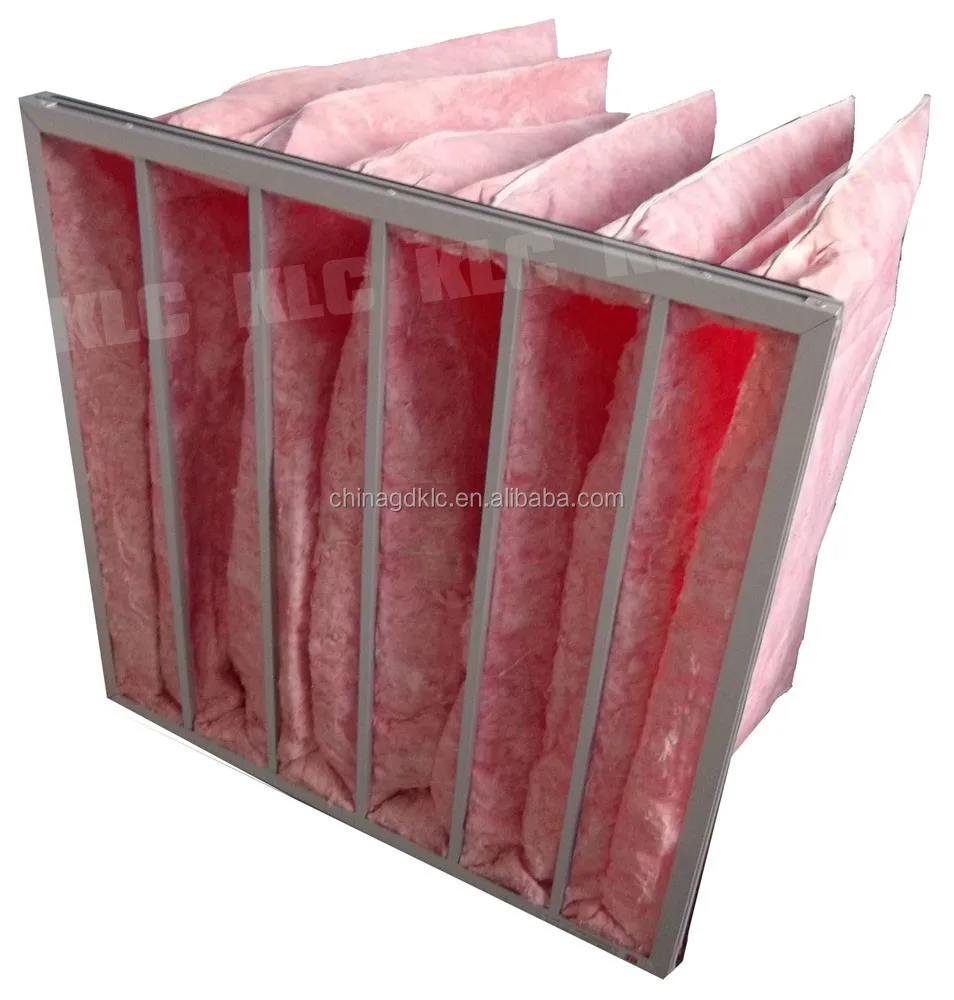

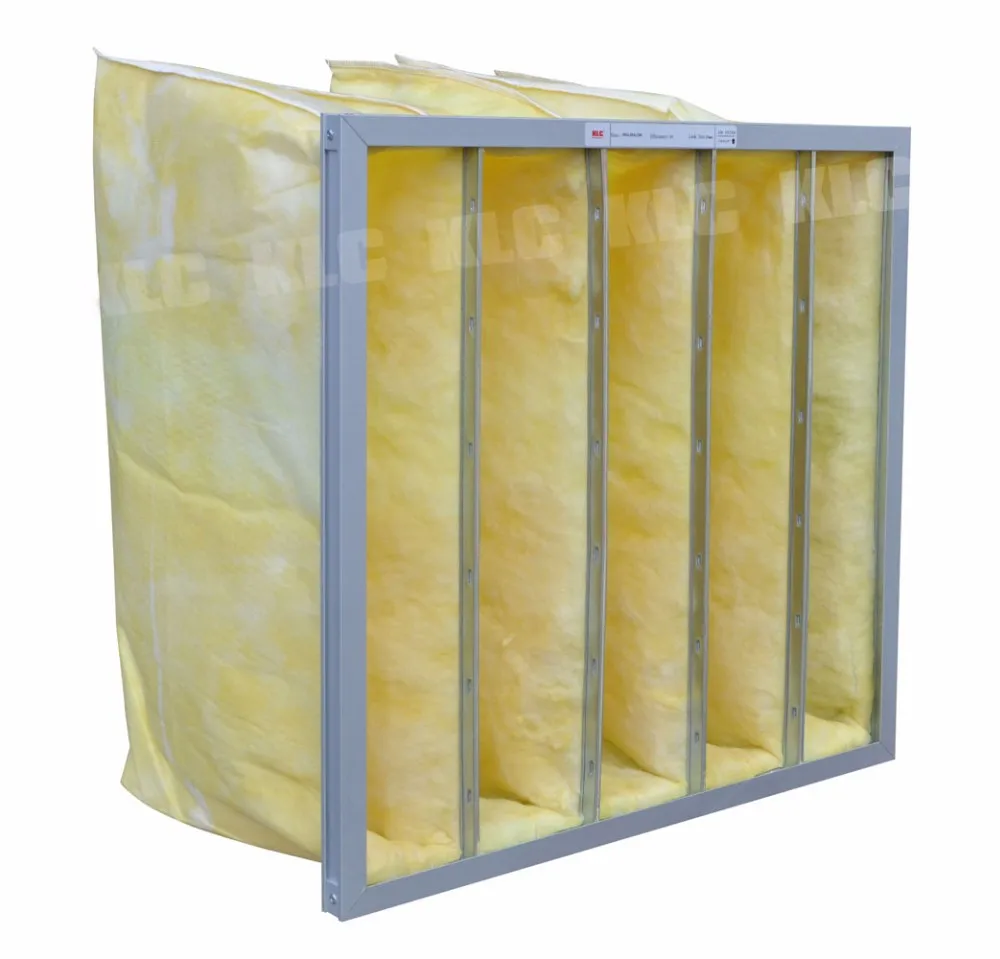

2016 HVAC pocket filter with big air flow / for heavy dust manufatcurer

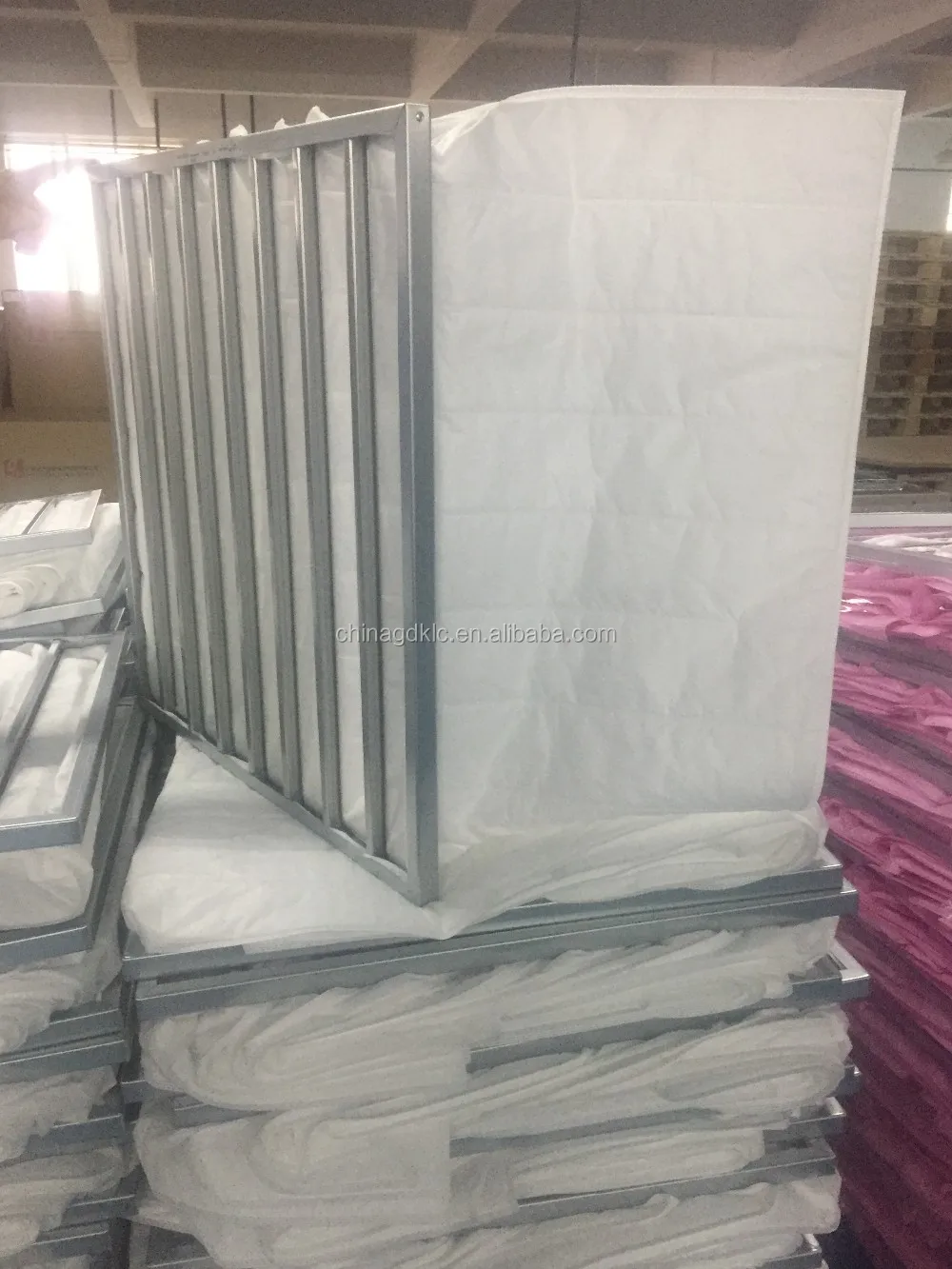

fiberglass dust collector filter bag

1)Material and operation conditions

medianon-woven

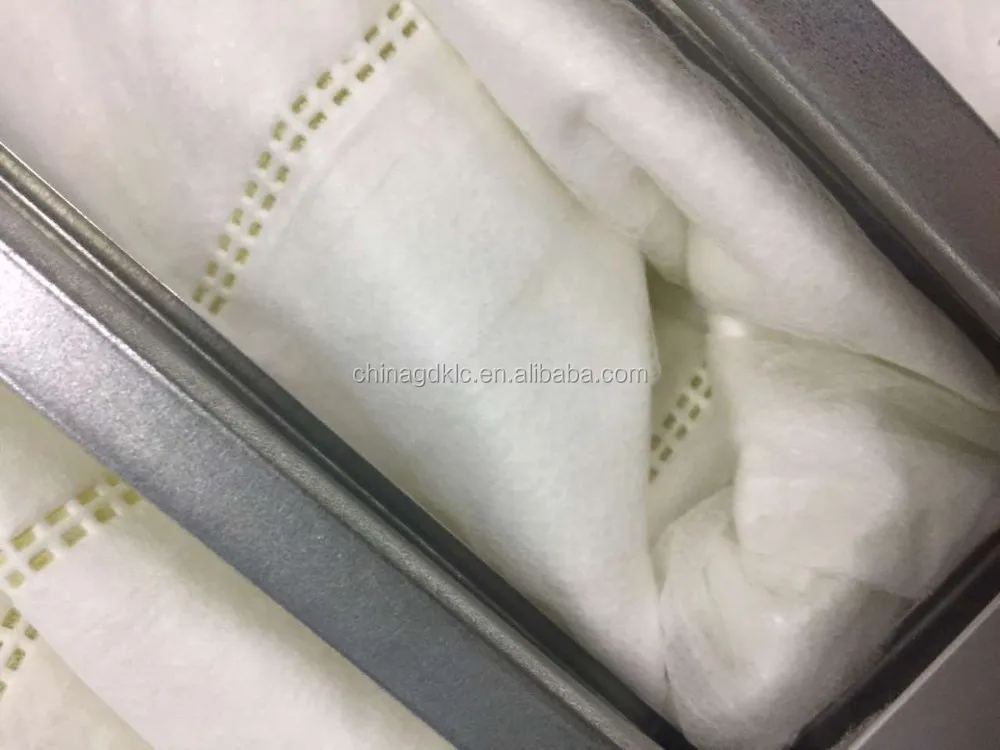

pocket typesewing bag,ultrasonic bag
framealuminum/galvanized/stainless steel/wood frame
efficiency45%~95%  0.5μm
max.temperature80°C
max.humidity100%
optional aluminum 17~50mm
optional plastic 21mm



2)Product features

1.Adopt superfine synthetic filter,large dust holding capacity,efficiency stability in the life cycle of using.

2.Selection of optimized V-shaped bag structure,small resistance,long service life.



3)Application

It is ideal configuration products to widely use in ventilation system.

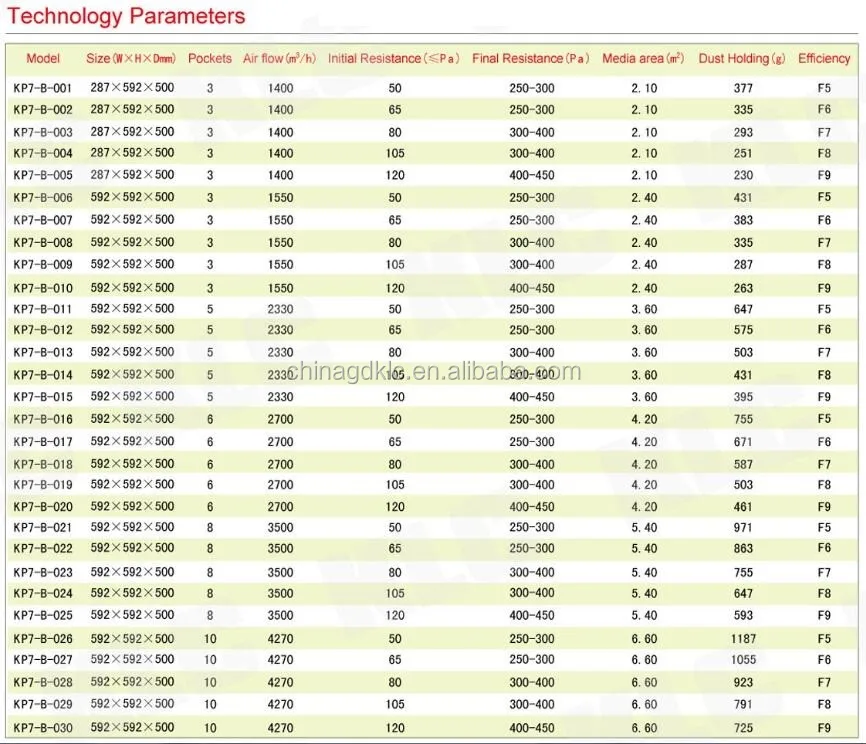

4)Technology parameters

model

width

(mm)

height

(mm)

depth

(mm)

pocket

air flow

(m³/h)

initial resistance

(≤pa)

final resistance

(pa)

media area

(m²)

dust holding

(g)

efficiency
  KP7-B-001  295  595    500   3 1400 50 250-300 2.22 400 F5
  KP7-B-002 295   595   500   3 1400 65 250-300 2.22 350 F6
  KP7-B-003  295  595   500   3 1400 80 300-400 2.22 320 F7
  KP7-B-004  295  595   500   3 1400 105 300-400 2.22 270 F8
  KP7-B-005  295  595   500   3 1400 120 400-450 2.22 250 F9
  KP7-B-006  595  595   500   3 1550 50 250-300 2.54 460 F5
  KP7-B-007  595  595   500   3 1550 65 250-300 2.54 410 F6
  KP7-B-008  595  595   500   3 1550 80 300-400

 2.54

 360 F7
  KP7-B-009  595  595   500   3 1550 105 300-400 2.54 310 F8
  KP7-B-010  595  595   500   3 1550 120 400-450 2.54 280 F9
  KP7-B-011  595  595   500   5 2300 50 250-300 3.81 690 F5
  KP7-B-012  595  595   500   5 2300 65 250-300 3.81 610 F6
  KP7-B-013  595  595   500   5 2300 80 300-400 3.81 540 F7
  KP7-B-014  595  595   500   5 2300105 300-400 3.81 460 F8
  KP7-B-015  595  595   500   5 2300120 400-450 3.81 420 F9
  KP7-B-016  595  595   500   6 2700 50250-300 4.45 800 F5




5) ISO Certificate of Registration

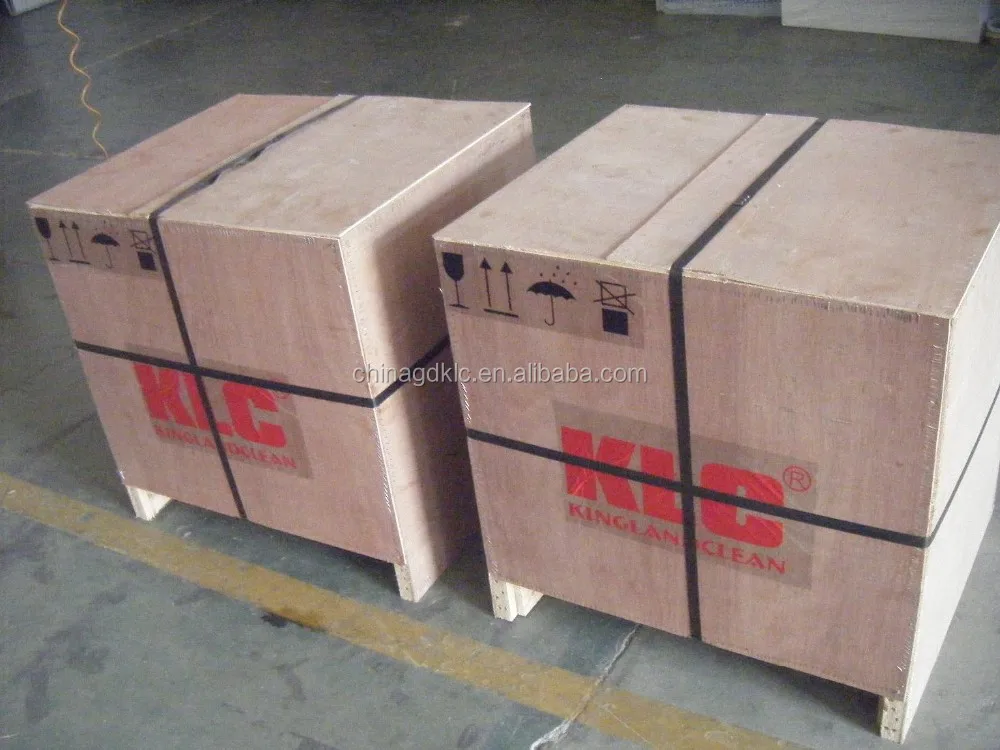

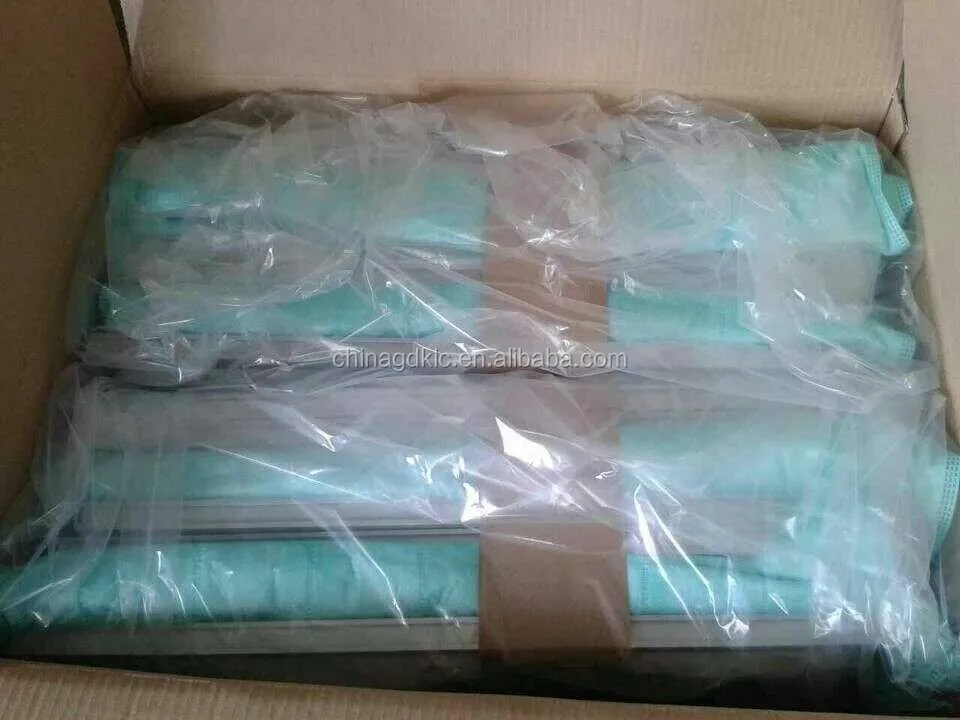

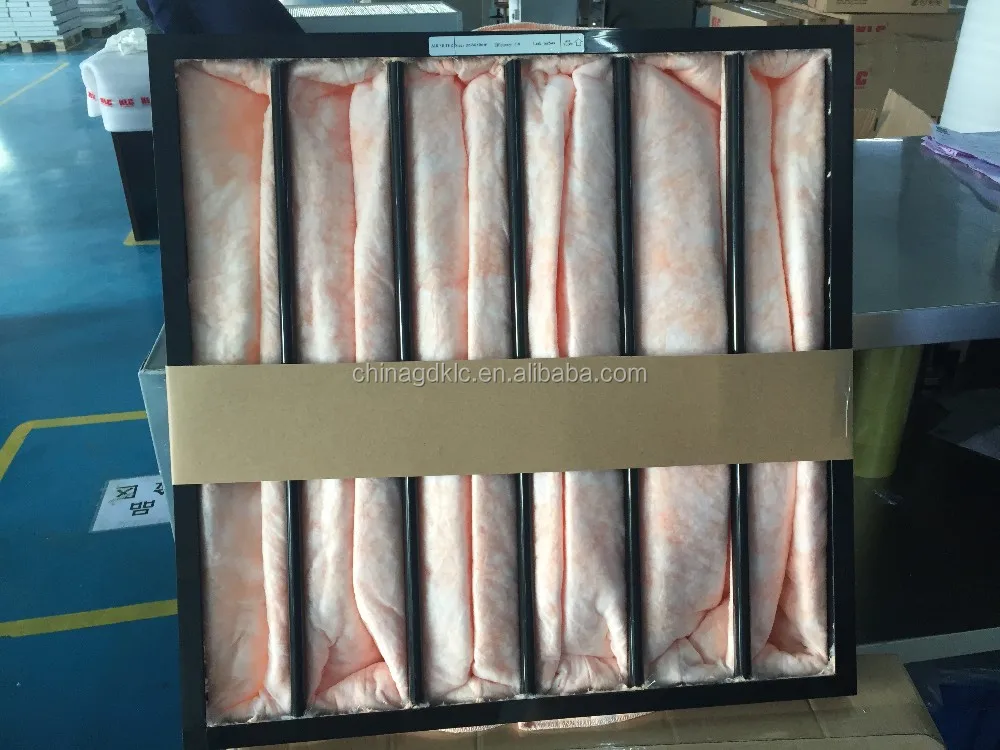

6)Packaging

step one

 step two

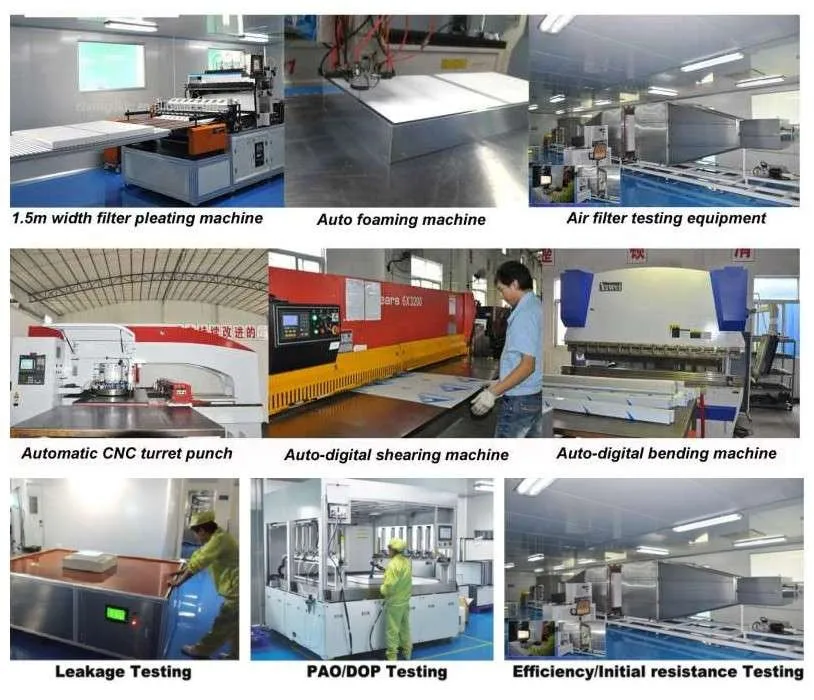

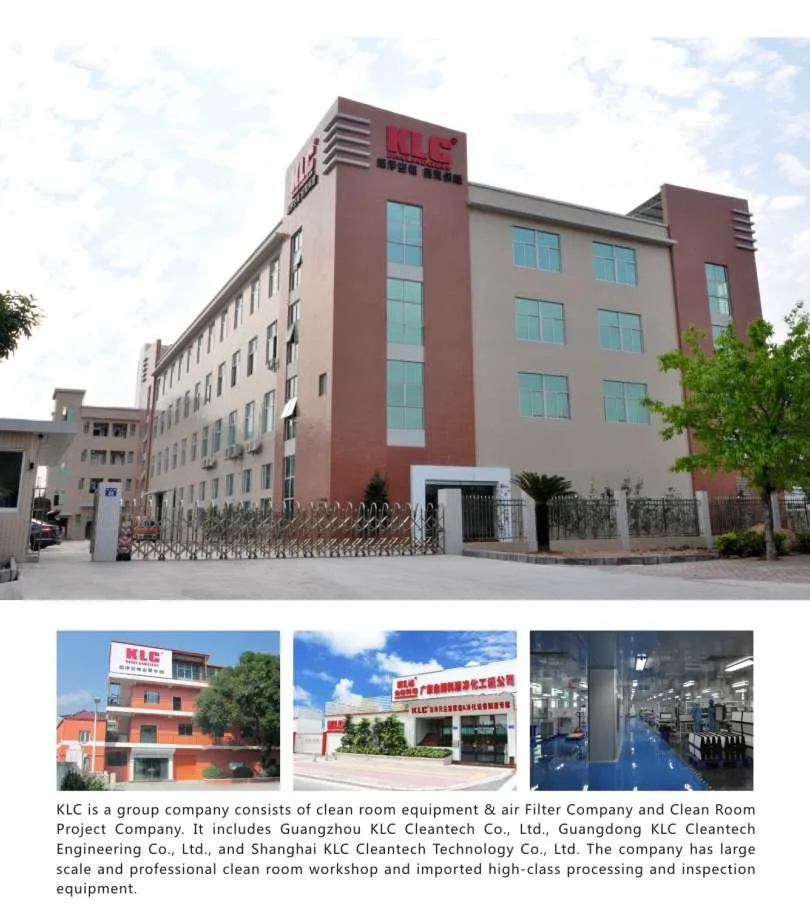

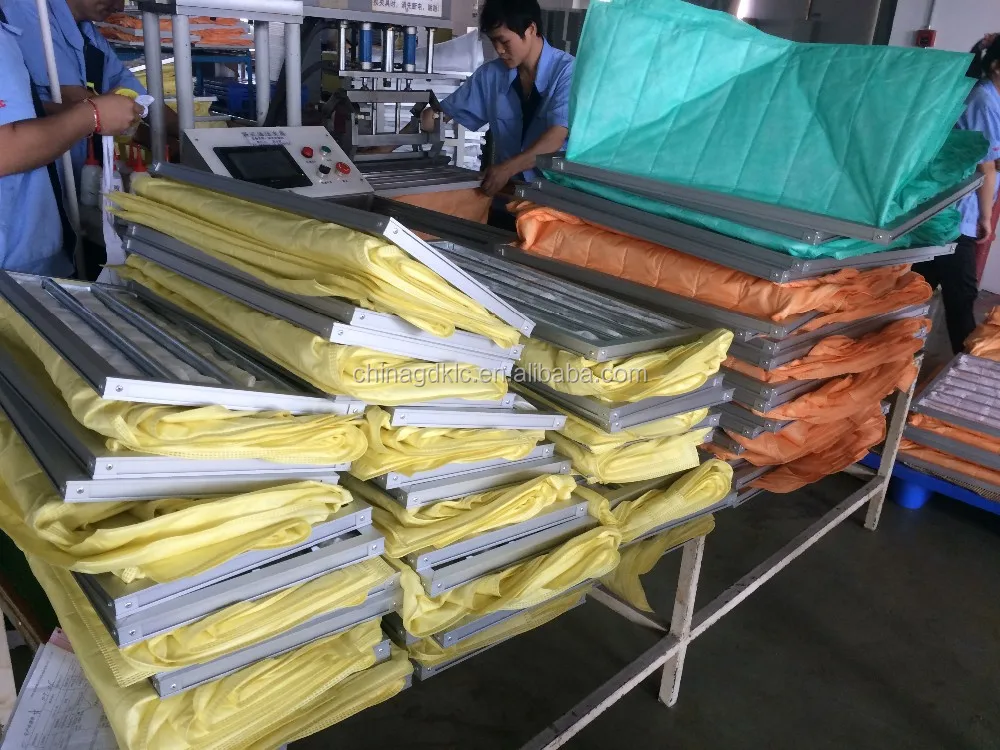

7)Factory information

Guangdong Kinglandclean Purification Technology Industry Co., Ltd., established in 1994, is a manufacturer of stainless steel and plastic coated clean room equipment. We also produce non-dust room equipment and supply ultra clean worktables, pass boxes and ultra clean fan filter units.

 Industries we supply include electronics, micro-electronics, precision instruments, laboratory equipments, food processing and aviation. Affiliated with the Chinese Electronics Academic Association, we strongly believe in producing quality products. Presently, all of our products are manufactured according to ISO9001 stipulations.

As one of the first manufacturers entering this market, we are now able to offer a very wide range of products. In addition to the above products, we also supply highly efficient blowing exit, removable self-cleaning devices, non-dust wardrobes and much more. Recently we have developed a new automatic air shower made from stainless steel. This reliable and advanced unit is already gaining popularity in both the domestic and international markets.

We have a very strong technology department with well-versed engineers knowledgeable of international standards and techniques, particularly those from the USA, Japan and Taiwan. Furthermore, we also offer outstanding customer and after-sales services, and provide technical support to every client.

We welcome both new and existing customers to come and take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
